Robotic Joint Framework: The Pinnacle of Multi-Axis CNC Precision

This monolithic structure serves as the critical structural backbone and protective housing for advanced robotic joints, directly sustaining the dynamic loads

of the entire motion system.

CNC Technical Challenges & Characteristics:

The production of this framework is a masterclass in multi-axis CNC capability, seamlessly integrating complex multi-surface milling with high-precision turning.

*Engineering Core (Milling Complexity):Achieving the intricate geometry requires sophisticated multi-axis simultaneous programming. The primary challenge

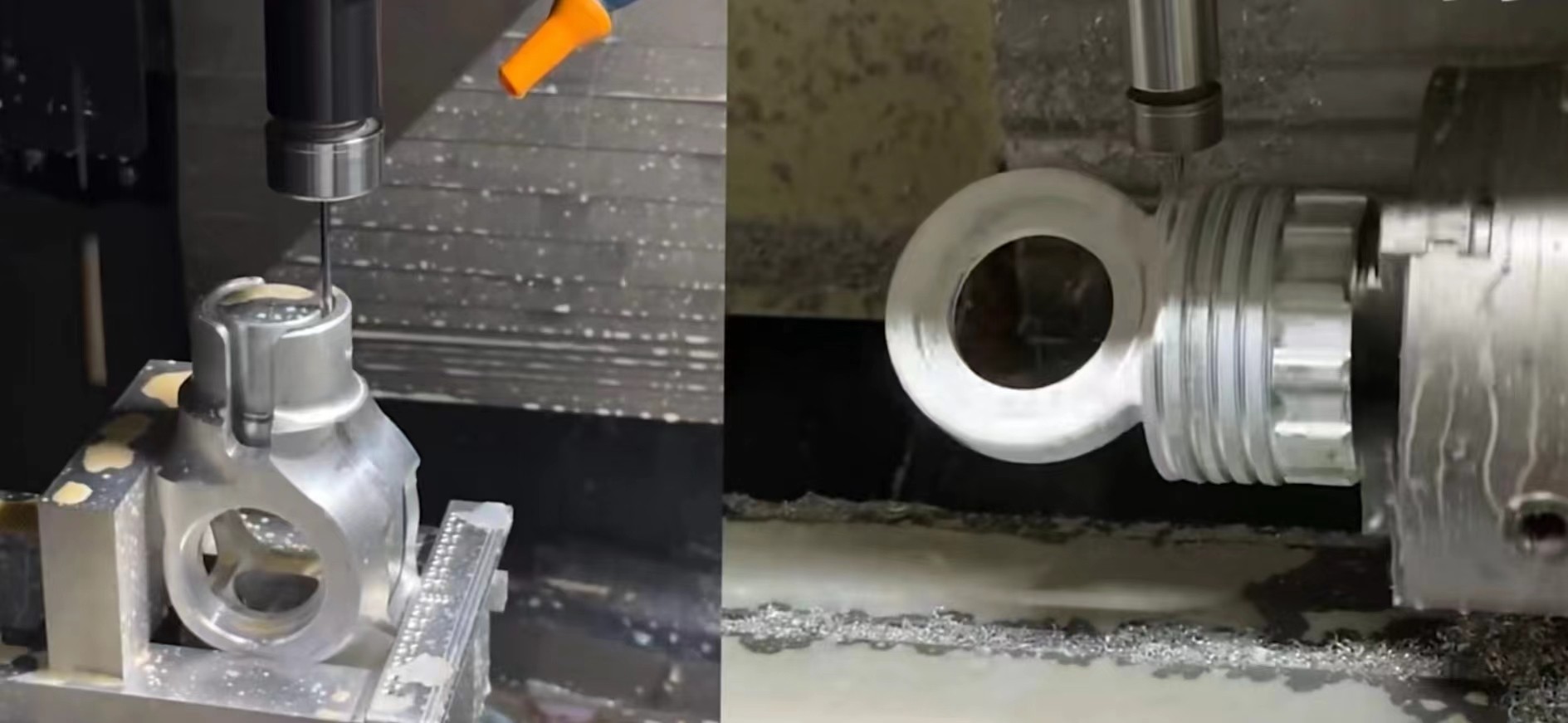

lies in executing deep-hole boring (as seen in the left stage) while maintaining sub-micron tolerances for the relative positioning of large bore systems—specific

ally ensuring absolute coaxiality and perpendicularity across the entire frame.

*Process Integration: Integrating complex surface contouring, deep-drilling, and high-tolerance precision threading (as seen in the right turning stage) into a

single monolithic component is exceptionally demanding. Success relies on custom-engineered fixturing to eliminate tolerance stack-up during multi-setup

transitions, ensuring a seamless fit for harmonic drives and high-precision bearings.

*Monolithic Integrity:Utilizing a "machined-from-solid" approach ensures superior structural rigidity and enhanced dynamic response, allowing the joint to

withstand high-torque maneuvers without deflection.

*Material:Precision-engineered from High-Strength Aerospace-Grade Aluminum Alloy, providing an optimal stiffness-to-weight ratio for high-speed robotic

applications.

This precision-machined framework is the fundamental cornerstone for modern high-performance robotics, enabling ultra-high positioning accuracy and

exceptional dynamic performance.
